Research House University of Bradford
Download
as PDF New build, two storey, two bedroom house, constructed for the purposes of providing training for university students in the health sector.
Research House University of Bradford : Project images
Click on image to preview full size
Energy and fuel use
Measured data from renewable generation is not yet available.

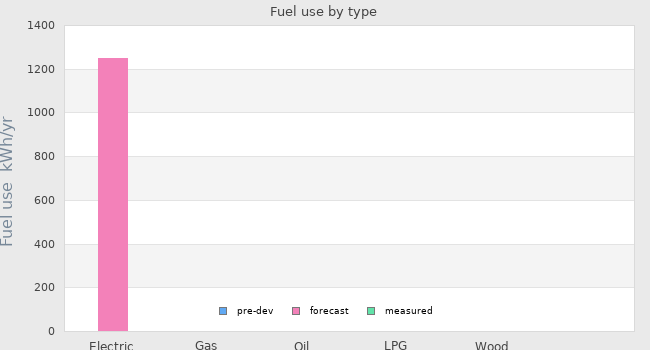

Fuel use
| Pre-development | Forecast | Measured | |
| Electricity use | - | 1250 kWh/yr | - |
|---|---|---|---|
| Natural gas use | - | - | - |
| Oil use | - | - | - |
| LPG use | - | - | - |
| Wood use | - | - | - |
| Other Fuel | - | - | - |
| Pre-development | Forecast | Measured | |

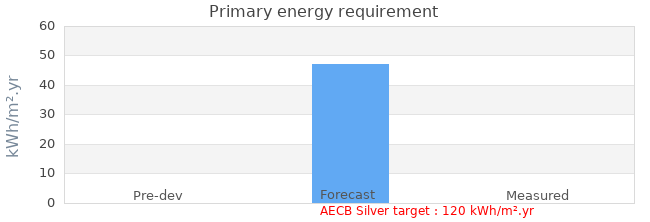

| Primary energy requirement | - | 47 kWh/m².yr | - |
|---|---|---|---|

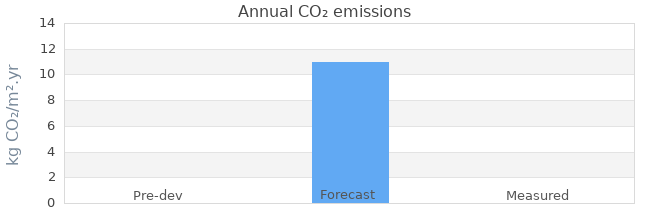

| Annual CO₂ emissions | - | 11 kg CO₂/m².yr | - |
| Annual space heat demand | - | 8 kWh/m².yr | - |
Renewable energy
| Electricity generation | Forecast | Measured |
|---|---|---|
| Renewables Technology | - | - |
| Other Renewables Tech | - | - |
| Electricity consumed by generation | - | - |
| Primary energy requirement offset by renewable generation | 47 kWh/m².yr | - |
| Annual CO₂ emissions offset by renewable generation | 11 kg CO₂/m².yr | - |
Calculation and targets
| Whole house energy calculation method | SAP |
|---|---|
| Other whole house calculation method | - |
| Energy target | AECB Silver |
| Other energy targets | - |
| Forecast heating load | 43.5 W/m² demand |
Airtightness
| Date | Result | |
| Pre-development air permeability test | - | 3m³/m².hr @ 50 Pascals |
|---|---|---|
| Final air permeability test | 25 August 2017 | 2.88m³/m².hr @ 50 Pascals |
Project description
| Stage | Occupied |
|---|---|
| Start date | 01 July 2016 |
| Occupation date | 15 September 2017 |
| Location | Bradford North Yorkshire England |
| Build type | New build |
| Building sector | Mixed-use |
| Property type | Semi-Detached |
| Construction type | Masonry Cavity |
| Other construction type | |
| Party wall construction | Masonry Cavity |
| Floor area | 67 m² |
| Floor area calculation method | Approximate Floor Area |
| Building certification |
Project Team
| Organisation | University of Bradford |
|---|---|
| Project lead person | Spring and Company |
| Landlord or Client | University of Bradford |
| Architect | Bowman Riley/ Cassidy + Ashton |
| Mechanical & electrical consultant | Ramboll/ DR Design |
| Energy consultant | Ramboll/ DR Design |
| Structural engineer | Mason Clark |
| Quantity surveyor | Faithful and Gould |
| Consultant | |
| Contractor | Aspect Construction |
Design strategies
| Planned occupancy | The Research House occupancy numbers will vary during its use depending on which faculty is using the facilities. It is not envisaged the numbers will reach over 10-15 and will not have permanent occupancy. |
|---|---|
| Space heating strategy | Radiators fed via CHP Plant and gas fired boilers. |
| Water heating strategy | HWS cylinder fed via CHP Plant and Gas fired boilers. |
| Fuel strategy | CHP Plant and gas fired boilers |
| Renewable energy strategy | |
| Passive Solar strategy | |
| Space cooling strategy | |
| Daylighting strategy | Windows limited to two elevations only, and located within a courtyard situation. |
| Ventilation strategy | Mechanical fresh air extract ventilation via whole house ventilation unit |
| Airtightness strategy | Constructed to AECB standard details |
| Strategy for minimising thermal bridges | Constructed to AECB standard details |
| Modelling strategy | SAP |
| Insulation strategy | Pipework and ductwork insulated in accordance with Building Regulations |
| Other relevant retrofit strategies | |
| Contextual information | The Research House has been developed as part of a wider refurbishment project, therefore the location, orientation, height and opportunities for glazing were all constrained by the existing site, as well as security and planning considerations. It was planned as a 'typical' two up/ two down terraced house that makes up a large proportion of the housing stock of the city. The site is severely sloping, and the house is set within a courtyard to the front and back. Issues regarding ground water, and asbestos found within the existing floor slab of the mill have influenced the design and how services can enter and exit the house. The house is not stand alone and receives it energy supplies from the main building. |
Building services
| Occupancy | The Research House occupancy numbers will vary during its use depending on which faculty is using the facilities. It is not envisaged the numbers will reach over 10-15 and will not have permanent occupancy. |
|---|---|
| Space heating | Radiators fed via CHP Plant and Gas fired boilers |
| Hot water | HWS cylinder fed via CHP Plant and Gas fired boilers |
| Ventilation | Mechanical fresh air and extract ventilation via whole house ventilation unit |
| Controls | The Primary Heat source to the Research House is controlled via the BMS for the whole building. However the Hearing Interface Unit has integral controls for hearing and domestic hot water. The whole house ventilation system operates continuously when the house is occupied but does have a boost facility |
| Cooking | Electric hob cooker installed |
| Lighting | To be determined by the client. Lamp holders have been provided for lamps provided by UoB |
| Appliances | Electric Hob |
| Renewable energy generation system | |
| Strategy for minimising thermal bridges | Details to AECB Standard.At External corner- 0.06At Internal corner- 0.06Party Wall 0.08Floor- 0.10Window head- 0.06Window Cill- 0.03Window Jamb- 0.03Eaves- 0.03(psi) value W/mK |
Building construction
| Storeys | 2 |
|---|---|
| Volume | 353m³ |
| Thermal fabric area | 196 m² |
| Roof description | Fully adhered Single Ply membrane on 265mm Rockwool Hardrock Multi-Fix 1000 insulation sitting on structural timber deck |
| Roof U-value | 0.14 W/m² K |
| Walls description | Fully filled insulated blockwork cavity wall comprising:Rainscreen cladding100mm Blockwork150mm fully filled cavity insulation with Rockwool cavity batts140mm BlockworkAirtight parge coatStandard plaster skim finish |
| Walls U-value | 0.25 W/m² K |
| Party walls description | Fully filled insulated blockwork cavity wall comprising:Standard plaster skim finishAirtight parge coat100mm Blockwork150mm fully filled cavity insulation with Rockwool cavity batts140mm BlockworkAirtight parge coatStandard plaster skim finish |
| Party walls U-value | 0.25 W/m² K |
| Floor description | 75mm sand cement screed on 150mm thick Rockwool Thermal Rockfloor on Beam and Block floor |
| Floor U-value | 0.20 W/m² K |
| Glazed doors description | Polyester Powder Coated Aluminium double glazed thermally broken door |
| Glazed doors U-value | 0.20 W/m² K - |
| Opaque doors description | n/a |
| Opaque doors U-value | - - |
| Windows description | Polyester Powder Coated Aluminium double glazed casement windows |
| Windows U-value | 1.60 W/m² K - |
| Windows energy transmittance (G-value) | 39 % |
| Windows light transmittance | 66% |
| Rooflights description | n/a |
| Rooflights light transmittance | - |
| Rooflights U-value | - |
