New Farmhouse
Download
as PDF Kirsty Maguire Architects worked in collaboration with Hope Homes and Morgan Associates to design and build this farmhouse to the Passivhaus standard. Construction started in August of 2012, and the building was completed and certifed as a Passivhaus 12 months later. The house has a timber frame with I-joists, glulam beams and zinc cladding for the roof, a small wood burning stove, with hot water provided by an air source heat pump.
New Farmhouse : Project images
Click on image to preview full size
Energy and fuel use
Measured data from renewable generation is not yet available.

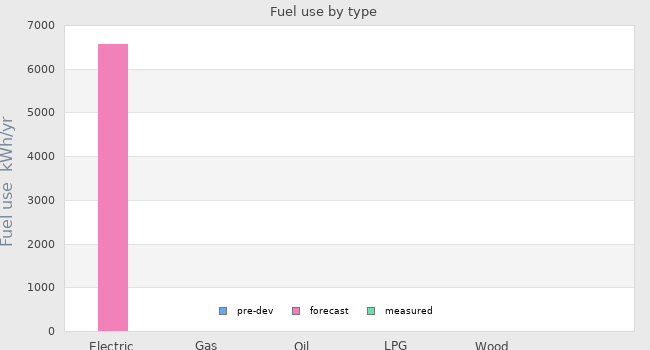

Fuel use
| Pre-development | Forecast | Measured | |
| Electricity use | - | 6565 kWh/yr | - |
|---|---|---|---|
| Natural gas use | - | - | - |
| Oil use | - | - | - |
| LPG use | - | - | - |
| Wood use | - | - | - |
| Other Fuel | - | - | - |
| Pre-development | Forecast | Measured | |

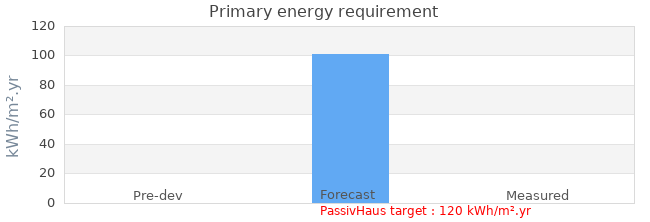

| Primary energy requirement | - | 101 kWh/m².yr | - |
|---|---|---|---|

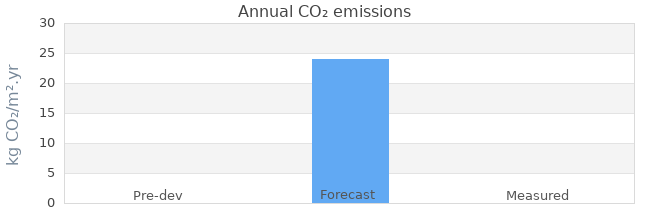

| Annual CO₂ emissions | - | 24 kg CO₂/m².yr | - |
| Annual space heat demand | - | 13 kWh/m².yr | - |
Renewable energy
| Electricity generation | Forecast | Measured |
|---|---|---|
| Renewables Technology | - | - |
| Other Renewables Tech | - | - |
| Electricity consumed by generation | - | - |
| Primary energy requirement offset by renewable generation | 101 kWh/m².yr | - |
| Annual CO₂ emissions offset by renewable generation | 24 kg CO₂/m².yr | - |
Calculation and targets
| Whole house energy calculation method | PHPP |
|---|---|
| Other whole house calculation method | - |
| Energy target | PassivHaus |
| Other energy targets | - |
| Forecast heating load | 9 W/m² demand |
Airtightness
| Date | Result | |
| Pre-development air permeability test | - | - |
|---|---|---|
| Final air permeability test | - | 0.22m³/m².hr @ 50 Pascals |
Project description
| Stage | Occupied |
|---|---|
| Start date | 01 August 2012 |
| Occupation date | 01 February 2013 |
| Location | Ayrshire Scotland |
| Build type | New build |
| Building sector | Private Residential |
| Property type | Detached |
| Construction type | Other |
| Other construction type | Timber Frame I Joists with rainscreen zinc cladding |
| Party wall construction | |
| Floor area | 162.5 m² |
| Floor area calculation method | Treated Floor Area (PHPP) |
| Building certification |  Passivhaus certified building |
Project Team
| Organisation | Kirsty Maguire Architect Ltd |
|---|---|
| Project lead person | Kirsty Maguire Architect Ltd |
| Landlord or Client | Private |
| Architect | Kirsty Maguire Architect Ltd |
| Mechanical & electrical consultant | |
| Energy consultant | Certifier - WARM |
| Structural engineer | Morgan Associates |
| Quantity surveyor | |
| Consultant | |
| Contractor | Hope Homes |
Design strategies
| Planned occupancy | |
|---|---|
| Space heating strategy | |
| Water heating strategy | |
| Fuel strategy | |
| Renewable energy strategy | |
| Passive Solar strategy | |
| Space cooling strategy | |
| Daylighting strategy | |
| Ventilation strategy | |
| Airtightness strategy | |
| Strategy for minimising thermal bridges | |
| Modelling strategy | |
| Insulation strategy | |
| Other relevant retrofit strategies | |
| Contextual information |
Building services
| Occupancy | |
|---|---|
| Space heating | |
| Hot water | |
| Ventilation | |
| Controls | |
| Cooking | |
| Lighting | |
| Appliances | |
| Renewable energy generation system | |
| Strategy for minimising thermal bridges |
Building construction
| Storeys | 2 |
|---|---|
| Volume | - |
| Thermal fabric area | - |
| Roof description | |
| Roof U-value | 0.11 W/m² K |
| Walls description | |
| Walls U-value | 0.11 W/m² K |
| Party walls description | |
| Party walls U-value | - |
| Floor description | Strip foundation with lightweight Thermalite block on internal leaf. Foundation insulated with 220mm Knauf Polyfoam in cavity. 250mm Knauf Polyfoam under slab with perimeter insulated. |
| Floor U-value | 0.13 W/m² K |
| Glazed doors description | |
| Glazed doors U-value | - - |
| Opaque doors description | |
| Opaque doors U-value | - - |
| Windows description | |
| Windows U-value | 0.84 W/m² K - |
| Windows energy transmittance (G-value) | - |
| Windows light transmittance | - |
| Rooflights description | |
| Rooflights light transmittance | - |
| Rooflights U-value | - |
