Elliott Drive (EnerPHit)

download as PDF
as PDF
58 Elliott Drive in Wellesbourne is the second certified EnerPHit project in the UK. Built in the 1940s, this semi-detached dwelling, owned by Orbit Heart of England Housing Association is one of a number of speedily built properties that were built to tackle the post war demand for new housing and whose construction is well known for poor thermal performance and associated problems with high heating bills and condensation. Fuel bills for a house of this type would typically cost around 1,100 a year (if mains gas is available), while the transformed building should now cost just a couple of hundred to run.The building has been upgraded with a 200mm layer of high performing insulation throughout. The existing solid floor slab was excavated to make space for insulation in the ground floor. Internal load bearing walls were removed and rebuilt with a thermal break inserted. uPVC triple glazed windows were positioned in the external wall insulation layer and supported on timber bearers.
Images Graphs Figures Description Strategies Building

Elliott Drive (EnerPHit) : Project images

Click on image to preview full size

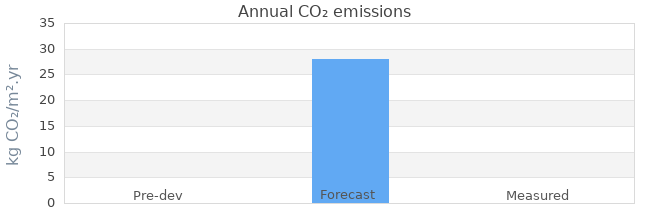

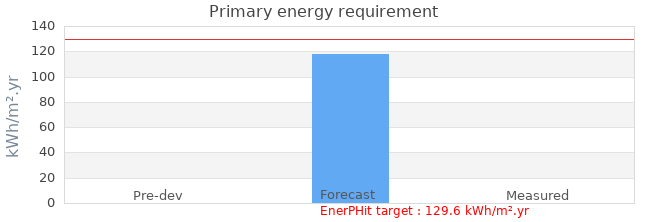

CO2 emissionsPrimary energy requirement
Energy target

Energy and fuel use

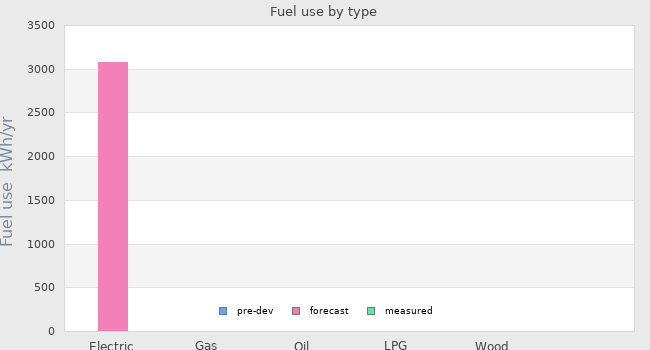

Fuel use by type
Primary energy requirement
CO2 emissions

Measured data from renewable generation is not yet available.

Fuel use

Electricity use - 3075 kWh/yr -
Natural gas use- - -
Oil use- - -
LPG use- - -
Wood use- - -
Other Fuel - - -
Primary energy requirement - 118 kWh/m².yr -
Annual CO₂ emissions - 28 kg CO₂/m².yr -
Annual space heat demand - 23 kWh/m².yr -

Renewable energy

Electricity generationForecastMeasured
Renewables Technology--
Other Renewables Tech--
Electricity consumed by generation --
Primary energy requirement
offset by renewable generation
118 kWh/m².yr -
Annual CO₂ emissions
offset by renewable generation
28 kg CO₂/m².yr -

Calculation and targets

Whole house energy calculation method PHPP
Other whole house calculation method-
Energy target EnerPHit
Other energy targets-
Forecast heating load 18 W/m² demand


Pre-development air permeability test--
Final air permeability test-0.53m³/m².hr @ 50 Pascals

Project description

Start date01 March 2011
Occupation date
Location Wellesbourne Warwickshire  England
Build typeRefurbishment
Building sectorPublic Residential
Property typeSemi-Detached
Construction typeOther
Other construction typeNo-fines concrete
Party wall construction
Floor area 65.4
Floor area calculation method Treated Floor Area (PHPP)
Building certification  Passivhaus certified building Passivhaus certified building

Project Team

OrganisationOrbit Heart of England Housing Association
Project lead person
Landlord or ClientOrbit Heart of England Housing Association
ArchitectStephen ONeil, ID Partnership
Mechanical & electrical consultant PH consultant Helen Brown, Encraft ltd
Energy consultant
Structural engineerSteven Holloway
Quantity surveyor
ConsultantCertifier - BRE
ContractorProperty Matters

Design strategies

Planned occupancy
Space heating strategyHeating - 90.1% efficiency Worcester Bosch 24i condensing gas boiler supplying 5 radiators and domestic hot water
Water heating strategyHeating - 90.1% efficiency Worcester Bosch 24i condensing gas boiler supplying 5 radiators and domestic hot water
Fuel strategy
Renewable energy strategy
Passive Solar strategy
Space cooling strategy
Daylighting strategy
Ventilation strategyMVHR Paul Focus 200 DC ventilation with 88.7% Efficiency
Airtightness strategy
Strategy for minimising thermal bridges
Modelling strategy
Insulation strategy
Other relevant retrofit strategies
Contextual information

Building services

Space heating
Hot water
VentilationMVHR Paul Focus 200 Dc ventilation with 88.7% Efficiency
Renewable energy generation system
Strategy for minimising thermal bridges

Building construction

Volume -
Thermal fabric area -
Roof description
Roof U-value -
Walls description
Walls U-value -
Party walls description
Party walls U-value -
Floor description
Floor U-value -
Glazed doors description
Glazed doors U-value - -
Opaque doors description
Opaque doors U-value - -
Windows description
Windows U-value - -
Windows energy transmittance (G-value) -
Windows light transmittance -
Rooflights description
Rooflights light transmittance -
Rooflights U-value -
